An arterial road-over-rail bridge.
Clark Street Bridge
Client: Waka Kotahi NZTA/Auckland Transport
- 4 lane arterial bridge
- 1,256m² MSE keystone wall
Project Overview

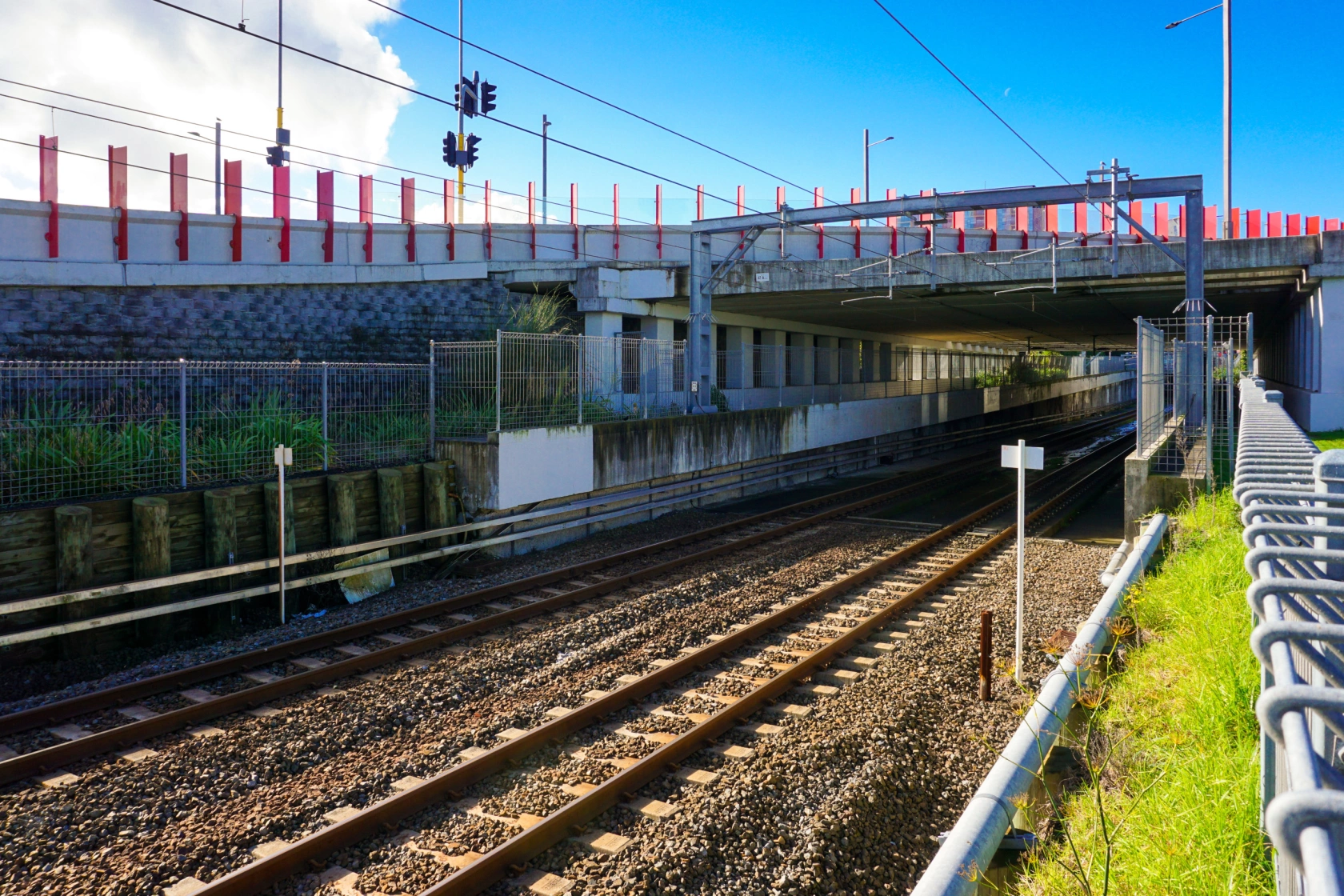

Forming part of the New Lynn TOD Stage 2 and 3 Contract, Dempsey Wood constructed a 4-lane arterial road-over-rail bridge (60m wide with a 20m span) with hollow, pre-stressed beams, and transverse post tensioning.

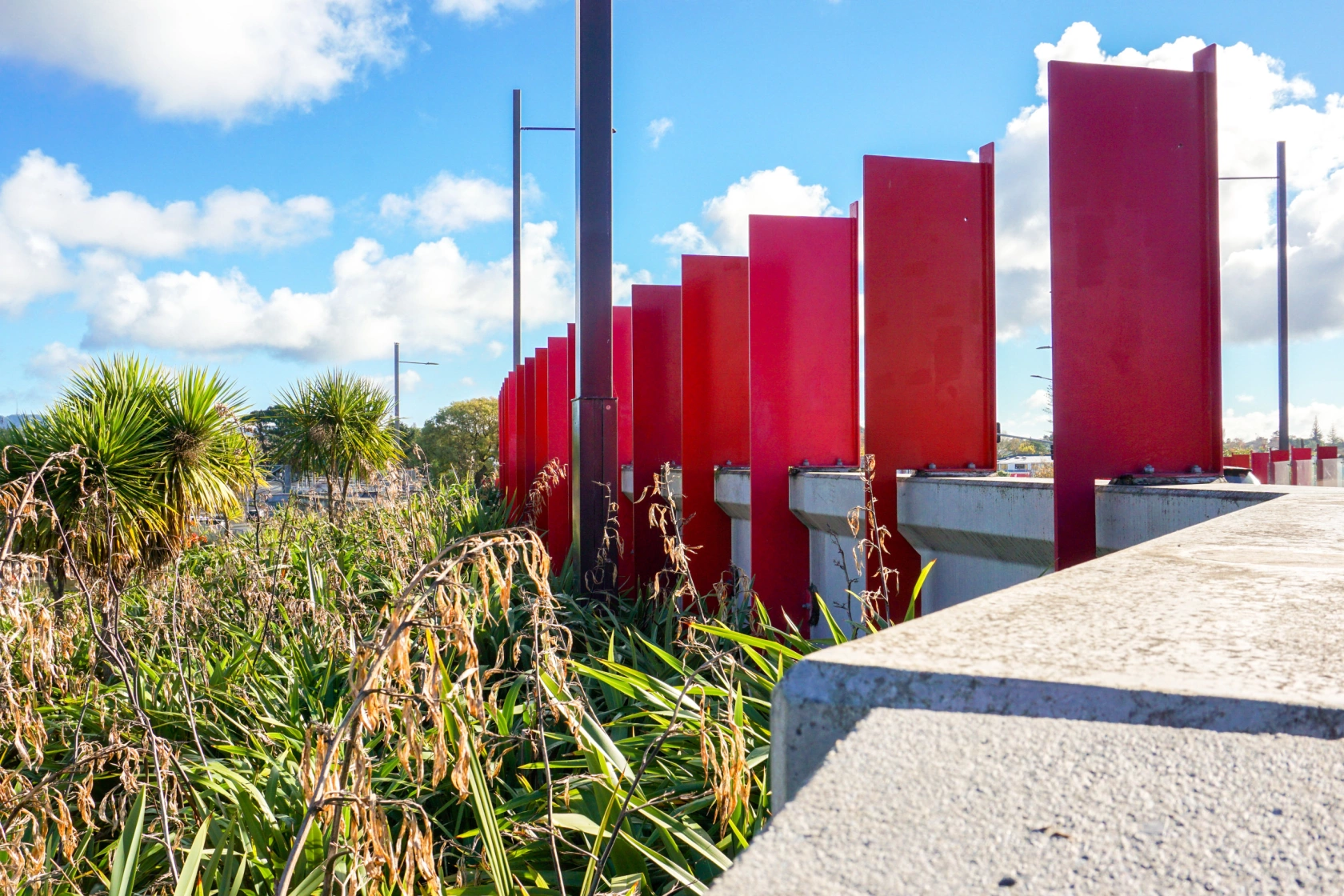

The abutments comprise piles, pile caps, columns and headstock with a settlement slab span, as well as a 1,250m² MSE keystone wall. A precast TL4 barrier was also constructed on the Clark Street approach to the bridge.
